QUALITY UNCOMPROMISED

With our optional local shield variant you can ensure quality without the need for a global enclosure purge.

DESIGNED FOR WAAM

Much more than just a torch: our bespoke end-effectors have aerospace robustness and a compact footprint.

HOME TO ADVANCED PROCESS INTELLIGENCE

Our end-effectors connect to WAAMCtrl to let you know what is happening throughout the build process.

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation.

END-EFFECTOR

PTA End-Effector

The most precise, stable and clean arc process, suitable for small to medium scale parts. Fully independent material and energy feed rates, enabling full thermal and geometry control.​

END-EFFECTOR

CWMIG® End-Effector

Next generation high-productivity process and end-effector, suitable for large-scale parts, cladding and repair. Fully independent material and energy feed rates, enabling full thermal and geometry control, and much higher energy efficiency.​

END-EFFECTOR

PTA Advanced End-Effector

Additional wire feeding capability. Each wire can be controlled independently in terms of feeding timing and wire feed speeds. Wires with the same composition can be fed simultaneously to increase deposition rates. Wires with different composition can be fed to produce new alloys in-situ, or produce functionally graded materials. No physical changes of setups are required, it all happens within the same head.​

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

The melt pool is established, material is deposited, and the on-board sensors deliver data to WAAMCtrl, right to the operator’s eyes and ears in real time.

Measure the layer height and reconstruct the 3D shape of the deposit thanks to ShapeTechTM to continuously verify the geometry’s accuracy.

Monitor pre-deposition and post-deposition temperatures with two advanced pyrometers. This ensures a consistent start temperature and cross-checks the robustness of process parameters.

View the melt pool with the remote process camera.

Provide electronic and automatic adjustment of the wire position for additional process stability (only available for PTA).

Locally shield reactive materials to reduce gas consumptions and pre-deposition operations time (optional with local shielding).

Front
REAR

automatic wire positioning system

TORCH

REAR PYROMETER

MELT POOL MONITORING CAMERA

SHAPETECHTM

LOCAL SHIELDING DEVICE

automatic wire positioning system

COLLISION DETECTION SENSOR

FRONT PYROMETER

PARTITIONED GAS FLOWS

MELT POOL MONITORING CAMERA

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt.

World-Class End-Effector

the end-effector

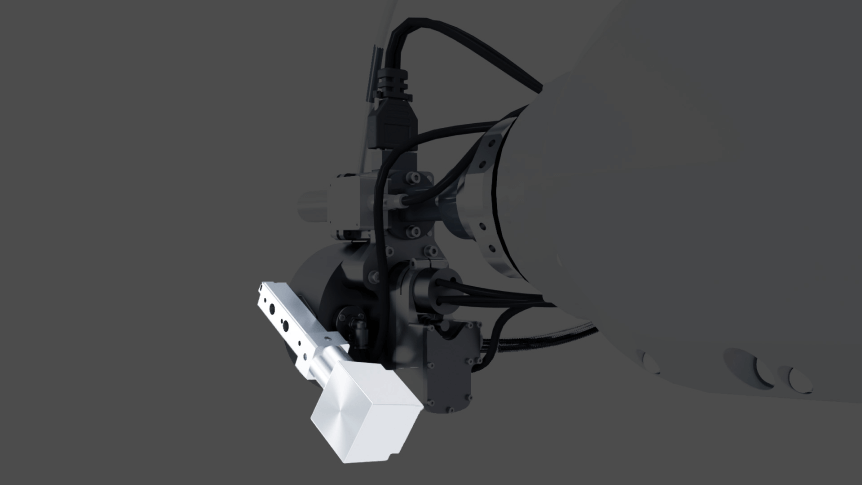

Remote process camera

View the melt pool with the remote process camera.

end effector shot

ShapeTechTM

Measure the layer height and reconstruct the 3D shape of the deposit thanks to ShapeTechTM to continuously verify the geometry’s accuracy.

end effector shot
end effector shot
end effector shot

Automatic wire positioning system (PTA)

Provide electronic and automatic adjustment of the wire position for additional process stability.
(only available for PTA)

end effector shot

Monitor pre-deposition and post-deposition temperatures with two advanced pyrometers. This ensures a consistent start temperature and cross-checks the robustness of process parameters.

Locally shield reactive materials to reduce gas consumptions and pre-deposition operations time (optional with local shielding).

Learn more about our Enclosure

RoboWAAM® Advanced, our wire arc additive manufacturing machine, was first commissioned in 2020. Our MKII machine, powered by the operating system WAAMCtrl, has novel sensors, specialised end-effectors and advanced health and safety solutions.

FIND OUT MORE
